BenchMix and Pilot Mixer Specifications

Overview | How it Works | Options

Features OPLB-350 benchmix OPLB-375/400* Benchmix RS-02 / XP-02 Pilot Mixer
Volume 1-10 liters (0.5-2.5 gallons) 1-20 liters (0.5-5 gallons) 20-80 liters (5-20 gallons)
HP 1.5 3 HP / 2.23 kW 1
Output Speed (maximum RPM) 12,000 12,000 3,450
Rotosolver Shear Impeller (stator) 1.14″ 1.14 and 1.57 in. / 28.95 and 39.88mm 2.36 in. / 59.94mm
Rotostat Shear Impeller (rotor) 0.95″ 0.95 in. / 24.1mm 2.48 in. / 62.99mm
Primary Pumping Impeller 1″ | 1.5″ | 1.6″ | 2″ 1″, 1.5″, 1.6″ and 2″ / 25.4, 38.1, 40.6 and 50.8mm 3″, 3.5″ and 4″ / 76.2, 88.9 and 101.6mm
Secondary Upper Impeller N/A 1.6 in. / 40.6mm 3 in. / 76.2
Adjustable Beaker Clamp check mark check mark N/A
Low Batch Adapter check mark check mark N/A
Casters N/A N/A check mark
Scalable check mark check mark check mark
Input Voltage 1/60/115 1/60/115-230 1/60/115-230 or 3/60/230-460
Max Dimensions (RS & XP with stand) 47″H x 20″W x 22″D 47″H x 20″W x 22″D 67″H x 23″W x 18″D



*European Benchmix lab mixer models are available in the 400 size only.

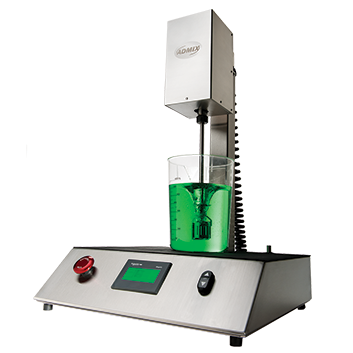

 Benchmix OPLB Rotosolver

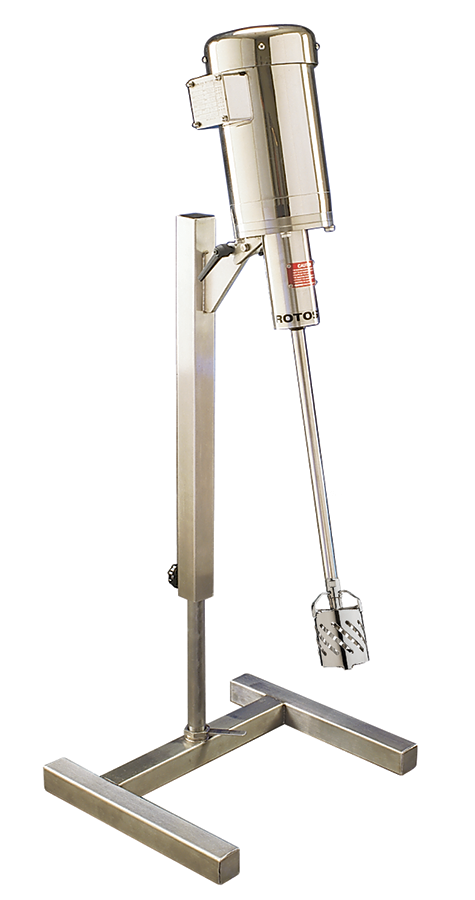

RS-02
Rotostat
XP-02

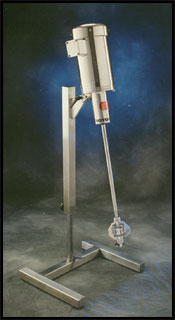

  Rotostat Model XP-02
