The FlowShear series of stainless steel mixers is available to suit your specific design and mounting requirements.

Model	Motor HP / Kw	60 Hz Speed	Rotor Dia.	Jetfoil™ Dia.	Max Volume Alone In Vessel (See Note)		Tip Speed
		RPM	(Inches / MM)	(Inches / MM)	(Gallons)	(Liters)	(FPS)	(m/ps)
FS-425	10 / 7.46	3450	4.25 / 108	0	85	322	63.98	19.51
FS-425F	15 / 11.19	3450	4.25 / 108	4 / 102	205	776	63.98	19.51
FS-500	25 / 18.64	3450	5 / 127	0	160	606	75.27	22.95
FS-500F	30 / 22.37	3450	5 / 127	4.7 / 119	365	1381	75.27	22.95
FS-800	30 / 22.37	1750	8 / 203	0	500	1893	61.09	18.63
FS-800F	40 / 29.83	1750	8 / 203	7.5 / 191	1150	4353	61.09	18.63
FS-900	50 / 37.29	1750	9 / 229	0	825	3123	68.72	20.95
FS-900F	75 / 55.93	1750	9 / 229	8.5 / 216	2000	7570	68.72	20.95

Note: Charts represent estimates only. Actual product viscosity and other possible agitation in the vessel could increase or decrease maximum batch size.

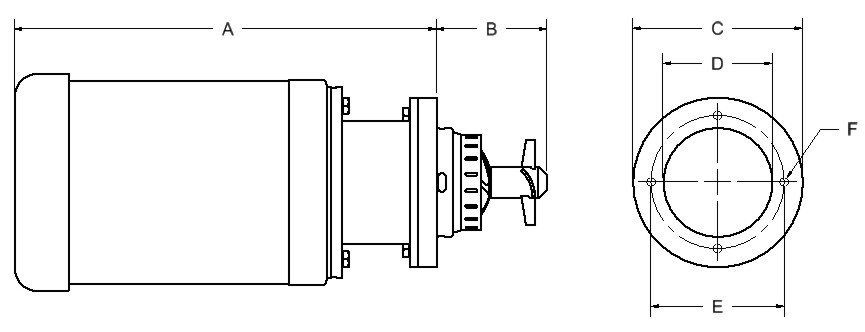

Model	Dimensions (Inches)
	A	B	C	D	E	F
FS-425	26	5	9	6	7.25	1/2 (4)
FS-425F	31	6	9	6	7.25	1/2 (4)
FS-500	32	6	11	7	9	1/2 (4)
FS-500F	34	7	11	7	9	1/2 (4)
FS-800	36	8	11	7	9	1/2 (4)
FS-800F	39	10	13	9.5	11	5/8 (4)
FS-900	40	9	13	9.5	11	5/8 (4)
FS-900F	41	12	13	9.5	11	5/8 (4)

* Based on TEFC motors
